Triton LR400-3D16 Dual Pump Controller
Original price was: £387.35.£355.00Current price is: £355.00.
The LR400-3D16 is designed for installations where larger pumps require increased current capacity. Automatic pump alternation helps distribute operating hours evenly between both pumps, reducing maintenance requirements and increasing equipment lifespan.
Advanced monitoring functions provide protection against overloads and electrical faults, ensuring reliable operation in demanding environments.
- Description
- Attributes
- Reviews (0)
Triton LR400-3D16 Dual Pump Controller (16A)
Heavy Duty Twin Pump Controller for Larger Pumping Stations
The Triton LR400-3D16 is a robust dual pump controller designed for larger twin pump installations requiring motor currents of up to 16 amps per pump. Engineered for reliability, it provides intelligent pump management, automatic alternation and comprehensive protection for sewage, wastewater and drainage pumping stations.
The controller continuously monitors pump operation, automatically alternating duty pumps to balance running hours while bringing the second pump online whenever additional capacity is required. Integrated alarm functions and motor protection help reduce downtime and safeguard your pumping system.
Manufactured within a durable IP65-rated enclosure, the LR400-3D16 is suitable for demanding commercial, industrial and residential applications.
Key Features
- Controls twin pumps up to 16A each
- Automatic duty/standby alternation
- Automatic assist pump operation
- Audible and visual high-level alarm
- Integrated motor overload protection
- Contactor fault detection
- Float switch controlled operation

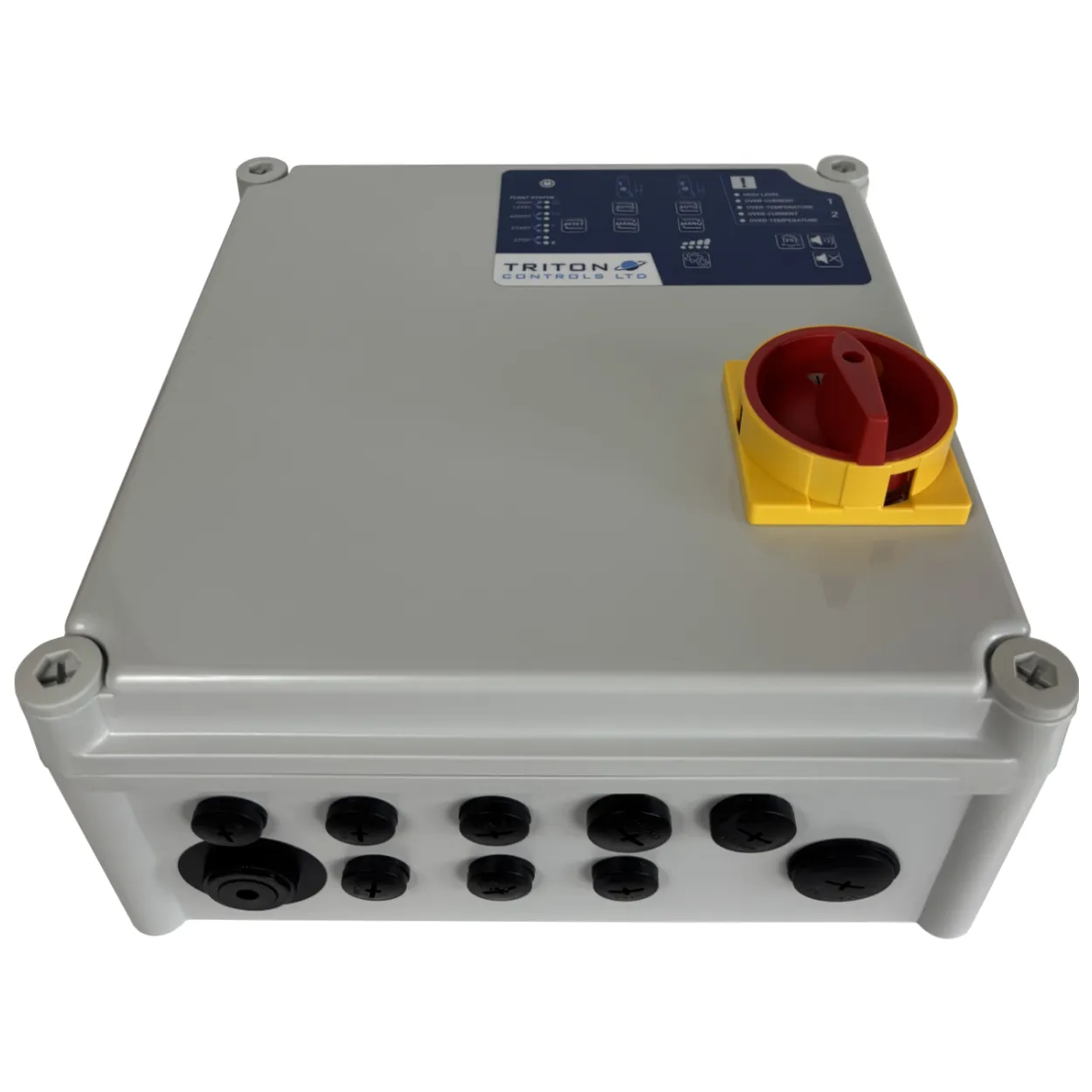

- Lockable rotary isolator
- Durable IP65 enclosure
- Suitable for indoor and outdoor installation
- Designed for commercial and industrial pumping stations
Typical Applications
Suitable for:
- Sewage pumping stations
- Commercial lift stations
- Wastewater treatment systems
- Industrial pumping installations
- Surface water pumping
- Residential developments
- Packaged pump stations
- Basement drainage
Why Buy From ECS Pumps?
ECS Pumps supplies genuine Triton Controls products supported by knowledgeable engineers with real-world pumping station experience. Whether you're replacing a failed panel or designing a new installation, we can help you choose the right control solution.
✔ Genuine Triton Controls products
✔ Expert pump control advice
✔ Fast UK delivery
✔ Competitive pricing
✔ Technical support and after-sales service
FAQ
What is the difference between the LR400-3D12 and LR400-3D16?
The LR400-3D16 is designed for pumps with a maximum running current of 16 amps, whereas the LR400-3D12 is suitable for pumps up to 12 amps.
Does the controller automatically alternate pumps?
Yes. The controller rotates the duty pump after each operating cycle to ensure balanced wear.
Can this panel operate two pumps at the same time?
Yes. During periods of high inflow, the controller will automatically start the second pump to increase pumping capacity.
Is the enclosure weatherproof?
Yes. The LR400-3D16 is supplied in a robust IP65-rated enclosure suitable for indoor and outdoor use when installed correctly.
| Weight | N/A |
|---|
